Captive Fasteners – Snap Latch
QUICK ACCESS FASTENERS – REMOVABLE PANEL CLIPS
Use:
Snap Latch fasteners offer a practical and reusable solution for securing access panels without the need for a male part. This two-piece system—consisting of a Nylon 6 plunger and a polycarbonate grommet—enables quick installation with a simple push and easy removal by pulling on the plunger. Ideal for applications requiring frequent access, it ensures reliable panel fastening while simplifying maintenance operations.
Advantages:
Tool-free installation, easy removal, reusable, ideal for maintenance, secure hold, time-saving
Specification:
Materials: Nylon 6 (plunger) / Polycarbonate (grommet)
Flame rating: UL 94V-2
Temperature range: -30 °C to +85 °C
Standard color: Black (other colors available on request)
V0 flame-retardant version available
RoHS compliant
Application:
Metal enclosures, electrical equipment, telecom systems, appliances, technical panels, industrial systems
Discover our range of Captive Fasteners – Snap Latch

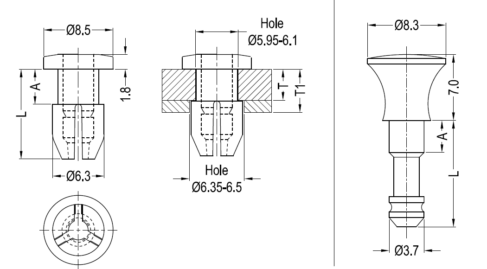

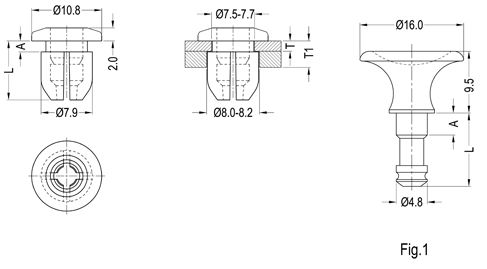

Measurements are expressed in millimeters (mm)
| SKU | Name | Head Diameter | A | L | Material | Request | hf:att:pa_head-diameter | hf:att:pa_a | hf:att:pa_l | hf:att:pa_matiere | hf:att:pa_b | hf:att:pa_base | hf:att:pa_bottom-hole | hf:att:pa_bottom-panel-thickness | hf:att:pa_c | hf:att:pa_categorie | hf:att:pa_conditionnement | hf:att:pa_corps | hf:att:pa_couleur | hf:att:pa_d | hf:att:pa_diam-tete | hf:att:pa_dimensionplatine | hf:att:pa_dimpercagex | hf:att:pa_dimpercagey | hf:att:pa_dimpercagez | hf:att:pa_e | hf:att:pa_effortn | hf:att:pa_entraxevis | hf:att:pa_epaisseurpcb | hf:att:pa_eppanneaumax | hf:att:pa_eppanneaumin | hf:att:pa_f | hf:att:pa_feature | hf:att:pa_g | hf:att:pa_h | hf:att:pa_hole | hf:att:pa_hole-a | hf:att:pa_i | hf:att:pa_lcable | hf:att:pa_long | hf:att:pa_max-cable-tie-width | hf:att:pa_max-panel-thickness | hf:att:pa_min-panel-thickness | hf:att:pa_obase | hf:att:pa_ocablemax | hf:att:pa_ocablemin | hf:att:pa_odiode | hf:att:pa_ofil | hf:att:pa_opercage | hf:att:pa_otete | hf:att:pa_p3d_postprocessing | hf:att:pa_p3d_scale | hf:att:pa_percagepcb | hf:att:pa_pp | hf:att:pa_prixdegressifsht | hf:att:pa_puht | hf:att:pa_qte-box | hf:att:pa_qtebox | hf:att:pa_qteparplaque | hf:att:pa_quantite | hf:att:pa_quantiteminimum | hf:att:pa_reference | hf:att:pa_resistance-a-la-corrosion | hf:att:pa_sachetsbox | hf:att:pa_screw | hf:att:pa_t | hf:att:pa_tete | hf:att:pa_top-hole | hf:att:pa_top-panel-thickness | hf:att:pa_type | hf:att:pa_typepercage | hf:att:pa_typevis | hf:att:pa_w | hf:att:pa_z |
|---|
Discover our range of QUICK ACCESS FASTENERS – REMOVABLE PANEL CLIPS
